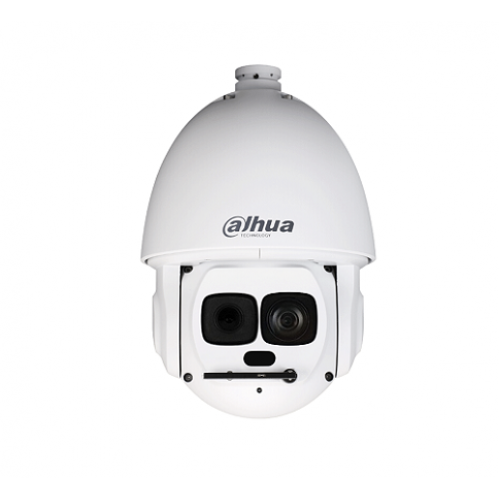

SD6AL445XA-HNR-IR, Ip kameralar, Ip kamera, IP speed dome

SD6AL445XA-HNR-IR

4 MP Network Camera

> 1/2.8” 2Megapixel STARVIS™ CMOS
> Powerful 3x optical zoom
> Starlight, WDR
> Max. 25/30fps@1080P
> IVS
> Support Wi-Fi
> IR distance up to 15m
> IP66

2,726.62 ₼

Sayı

Daha ətraflı məlumat

0 şərh | Şərh yaz

Açıqlama Yükləmələr Şərhlər (0)

Camera
The matrix	1/2.8" CMOS
Pixels	4 MP
Max. resolution	2560 × 1440
ROM	4 GB
RAM	1 GB
Electronic shutter speed	1/1 s – 1/30000 s
Scanning system	Progressive
Mines. lighting	Colour:0.005 Lux F1. 6 B / W:0.0005 Lux F1. 6 0 Lux (IR on))
IR Distance	300 m (984.25 ft)
IR Control On / Off	Zoom Prio / Manual / Smart IR / Off
IR LEDs	7
Windscreen wiper	There are
Lens
Focal length	3.95 mm – 177.7 mm
Max. aperture	F1.6 – F4.9
Viewing angle	D:70.3°-1.8°; C: 37°-1°; D:69.3°-2°
Optical zoom	45x
Focus Management	Auto / Semi-Auto / Manual
Closed focal length	0.01 m – 3 m (0.03 ft – 9.84 ft)
IR control	Auto
DOPE Distance	Detection	Notification	Speech recognition	Identification
	3554 m (11660.10 ft)	1421.6 m (4664.04 ft)	710.8 m (2332.02 ft)	355.4 m (1166.01 ft)
PTZ
Pan / Tilt Range	Pan:0° - 360° infinitely Tilt:-20°– +90°, Auto turn:180°
Manual control speed	Panning:0.1° - 200°/ s Slant:0.1° - 120°/ s
Preset speed	Pan:240° / s; Tilt:200°/ s
Presets	300
Tour	8 (Up to 32 presets per tour)
Pattern	5
Scanning	5
Turning off memory	Supports
Driving in standby mode	Preset / Tour / Template / Scan
Protocol	DH-SD Pelco-P / D (Auto speech Recognition)
General intellectual properties
Trigger events	Motion Detection, Video Disruption, Scene Change, Network Disconnection, IP Address Conflict, Illegal Access, and Storage Anomaly
IVS	Abandoned / Lost items
Artificial intelligence
Smart Capture	Support for capturing images of people, cars, and other vehicles.
Perimeter protection	Stretching and intrusion. Support for triggering alarms based on target types (person and car). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
Face recognition	Supports
SMD PLUS	Supports
Video
Compression	H. 265; H. 264B; H. 264M; H. 264H; MJPEG; MPEG4; H. 265+; H. 264+; MJPEG (Additional stream)
Streaming capability	3 streams
Permission	4M (2560 × 1440); 3M (2048 × 1536); 1080P (1920 × 1080); 720P (1280 × 960); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Frame Rate	Main stream:4M / 3M (1 – 25 / 30 fps), 1080P / 1.3M / 720P (1 – 25 / 30 fps) Additional Stream 1:D1 / CIF (1 – 25 / 30 fps) Additional Stream 2:1080P (1 – 25 / 30 fps), 720P (1 – 25 / 30 fps)
Data transfer rate monitoring	Variable / Constant
Bit rate	Main stream with default resolution: H.264: 3 Kbps–20480 Kbps H.265: 3 Kbps– 20480 Kbps
Day / Night	Auto (ICR) / Color / B / W
BLC	Supports
WDR	120dB
HLC	Supports
White Balance	Auto / In the room / On the street / Tracking / Manually / Sodium lamp / Natural light / Street lamp
Gain control	Auto / Manual
Noise reduction	2D / 3D
Motion Detection	Supports
Area of Interest (RoI)	Supports
Image stabilization	Email address
Prevent fogging	Digital
Digital zoom	16x
Rotate the frame	180°
Privacy Mask	Up to 24 zones and up to 8 zones on a single screen
Audio
Compression	G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729; G.723
Network
Ethernet	RJ-45 (10 / 100Base-T)
Protocol	IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Compatibility	ONVIF Profile S&G&T; CGI
Streaming method	Unicast / Multicast distribution
User / Host	19
Storage	FTP; Micro SD card (256 GB); P2P
Web Browsing	IE7 and later versions of Chrome 42 and earlier versions of Firefox 52 and earlier versions of Safari
Management software	Smart PSS; DSS; DMSS; Easy4ip; IVSS
Smartphones	IOS; Android
Certificates
Certificates	CE:EN62368-1; EN55032; EN61000-3-2; EN61000-3-3; EN55024; EN55035; EN50130-4 FCC: 47 CFR FCC Part15, Subsection B, Class A; ANSI C63. 4: 2014
Ports
RS-485	1 (Transmission rate range:1200-115200 bps)
Audio input	1
Audio output	1
Alarm Vx. / Output.	7 / 2
Protection
Degree of protection	IP67; 8000V FA lightning protection; Overload protection
Environment
Operating temperature	-40 ° C ~ 70 ° C (-40 ° F to 158 ° F)
Operating humidity	≤95 %
Electrical properties
Power supply	DC36V / 2.23A; HI-PoE
Power consumption	Main:20 W Max.: 36 W (IR light and PTZ are turned on at minimum voltage)
General information
Body	Metal
Sizes	382 mm × Φ240 mm (15.04" x Φ9. 45")
Net Weight	6.5 kg (14.33 lb)
Gross Weight	8.9 kg (19.62 lb)
