• On-Board Memory for up to 20,000 Cardholders/7,000 Events with battery-less backup
  • Supports 2 readers / keypads
  • 8 Facility Codes/Card Formats
  • 38 Access Levels per card
  • Supervised inputs
  • Available digital supervised relay outputs for increased security
  • RS-232 or RS-485 communications
  • 3-color LED Support
  • Surface Mount technology (SMT)
  • Flash memory
0.00 ₼
   0 şərh  |  Şərh yaz

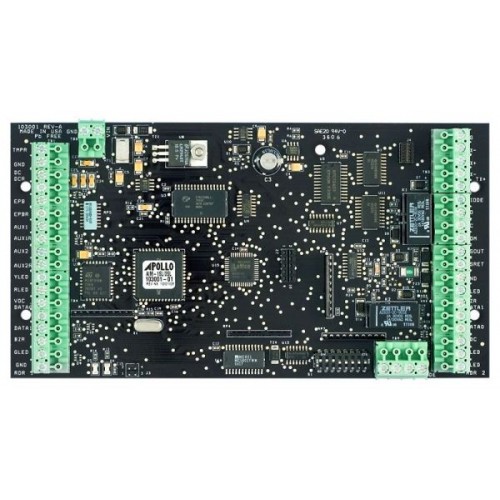

Expanding Apollo’s AIM Series reader interface line, the AIM-2SL has familiar superior features in a flexible package perfect for any size system. With possible configuration for 2 Readers/2 Doors or 2 Readers/1 Door, the AIM-2SL retains advanced features such as Precision Access and 38 Access Levels per card, and can maintain normal functions in off-line mode thanks to its up to 20,000 cardholder/7,000 event local database. That means you can be assured access to your site won’t be compromised even in the most extreme circumstances and your records will be safely stored in memory until communication is restored to the system controller. The AIM-2SL links door hardware with one of Apollo’s AAN or AAM Series Controllers, providing inputs for a full range of reader types including proximity, smart card, and biometric.  Up to 8 card formats are supported simultaneously allowing you to mix and match different reader types or easily migrate old card populations.   Going beyond the standard, all door hardware inputs for door contact, exit push button and device tamper are supplemented with 2 Supervised auxiliary inputs for use with motion sensors, panic buttons, door bolt monitors or any other standard input device. A full array of output options are available for the AIM-2SL including 2 on-board SPDT outputs (configurable for door strike or auxiliary).  Not stopping there, the AIM-2SL supports up to 8 Apollo ADA 10/11 Digital Relay Modules which lock down vulnerable door to interface wiring by only activating in response to an encoded digital signal generated by the AIM-2SL.

Power Requirements:+6 to +24Vdc @ 250mA
Dimensions:7.5 in  x  4 in  (19  x  10 cm)
Environment:

Operating Temperature:

Storage Temperature:

Relative Humidity:

0 to 50° C
-40 to 85° C
0 to 95%, non-condensing
Weight:1 Lb (.45 Kg)
Memory Backup:Capacitor based circuit, no battery required.
Reader Input Protocols:Wiegand Data1/Data0, Magnetic Clock/Data, Custom Protocols Available
Approvals:CE, RoHS
