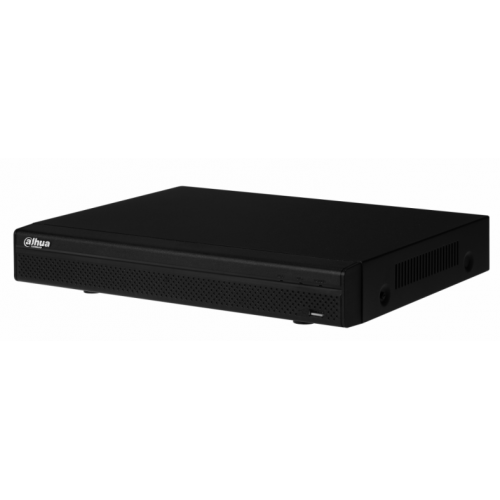

HCVR4204A-S2

4 Channel Penta-brid 720P Smart 1U Digital Video Recorder

> H.265 video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 5 channels IP camera inputs, each channel up to 2MP; Max 20Mbps Incoming Bandwidth
> Long transmission distance over coax cable
> Supports 1 SATA HDD, up to 10TB


192.79 ₼
   0 şərh  |  Şərh yaz
System Devices
Main ProcessorBuilt-in processor
Operating systemEmbedded LINUX OS
Video
Enter4 channels, BNC
StandardHDCVIHDCVI 720p Camera
Analog devicesNTSC (525Line, 60 fps), PAL (625Line, 50 fps)
IPSupport for 2 channels. 1080p/720p IP cameras
Audio
Enter4 channels, RCA
Conclusion1 channel, RCA
Two-way audio communicationReusing the audio input/audio output channel 1
Display
Interface1 HDMI, 1 VGA
Permission1920×1080, 1280×1024, 1280×720, 1024×768
Split Screen1/4
Privacy Mask4 rectangular zones (for each camera)
OSD MenuCamera name, Time, Video loss, Camera lock, Motion detection, Recording
Record
Video/audio compression formatH.264/G.711
Write SpeedMain stream:
720P / 960H/D1 (1-25 / 30 fps)
Data transfer rate96-4096 kbit / s
Recording modeManual, schedule (normal (continuous), motion detection), stop
Recording interval1-60 min. (default: 60 min.), before recording: 1-30 sec., after recording: 10-300 sec.
Video signal detection and alarms
Triggered by an eventRecord, PTZ, bypass, alarm output, send alarm video, email, FTP, snapshot, beep, and on-screen prompts
Video signal detectionMotion detection, motion detection zones: 396 (22x18), video signal loss and camera closing
Entering an alarmChannel 8
Relay outputChannel 3
Playback and backup
Synchronous playback1/4
Search ModeTime/Date, motion detection and accurate search (accurate to seconds)
Playback functionsPlay, Pause, Stop, Rewind, Speed up playback, Slow down playback, next file, previous file, next camera, Previous camera, Full screen, Repeat, Shuffle, select a record to save, Digital zoom
Backup modeSave to a USB device/Internal SATA CD burning device/on the network
Network
EthernetRJ-45 Port (10/100 Mbps)
Network management functionsHTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, фильтр IP, SNMP, P2P
Max. number of users128 users
SmartphonesiPhone, iPad, Android, Windows Phone
Data storage
Internal HDD drive2 SATA ports up to 8 TB
Auxiliary interface
USB interface2 ports (1 rear), USB2. 0
RS4851 port for controlling PTZ functions (rotate-tilt-zoom)
General information
Food12 vdc. current rating/4 A
Electricity consumption15 W (without HDD drives)
Operating conditions-10 °C - +55 °C/10%~90% rel. wetness./ 86~106 kPa
Dimensions (W×D×H)1U, 375×285×55 mm
Weight2.35 kg (without HDD disks)
